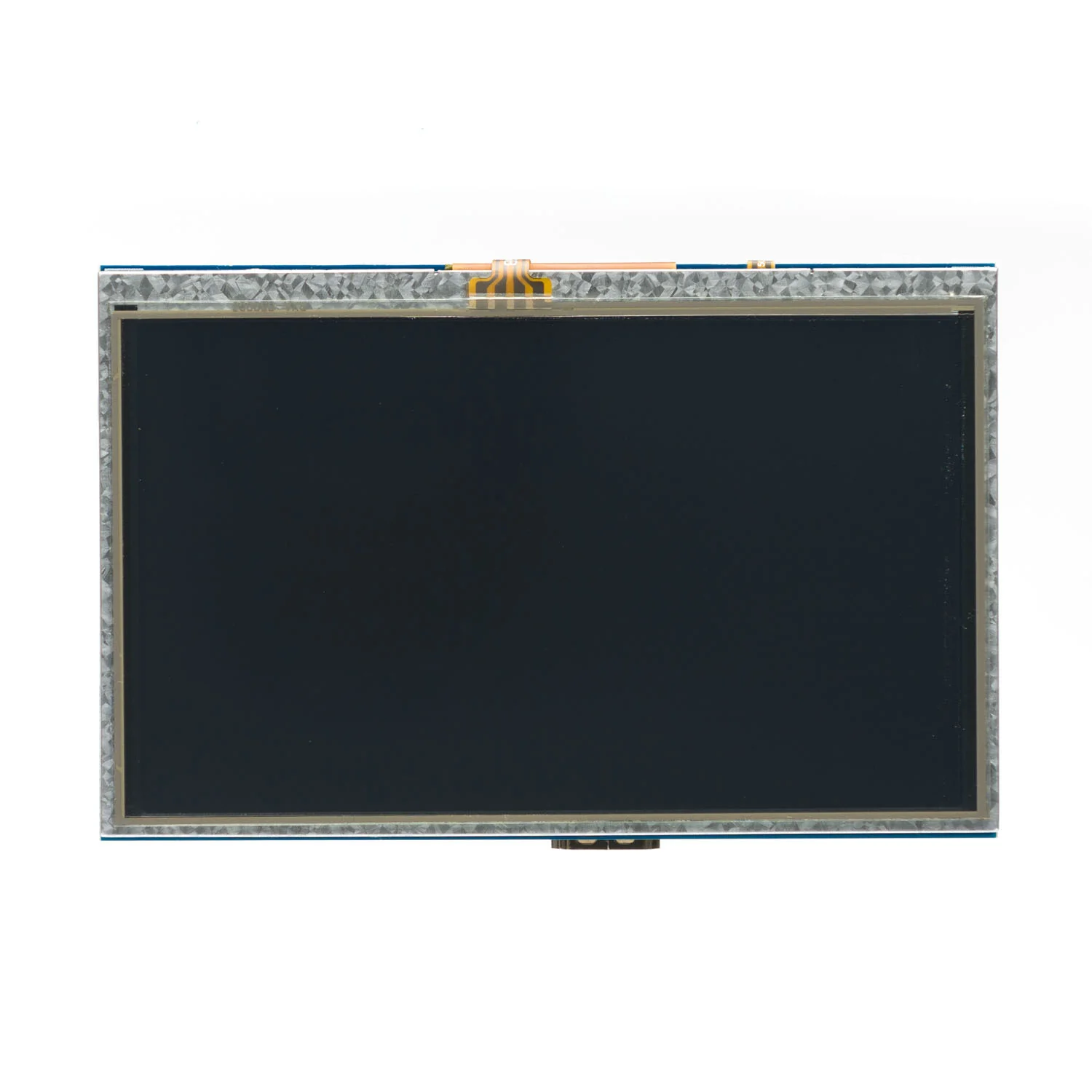

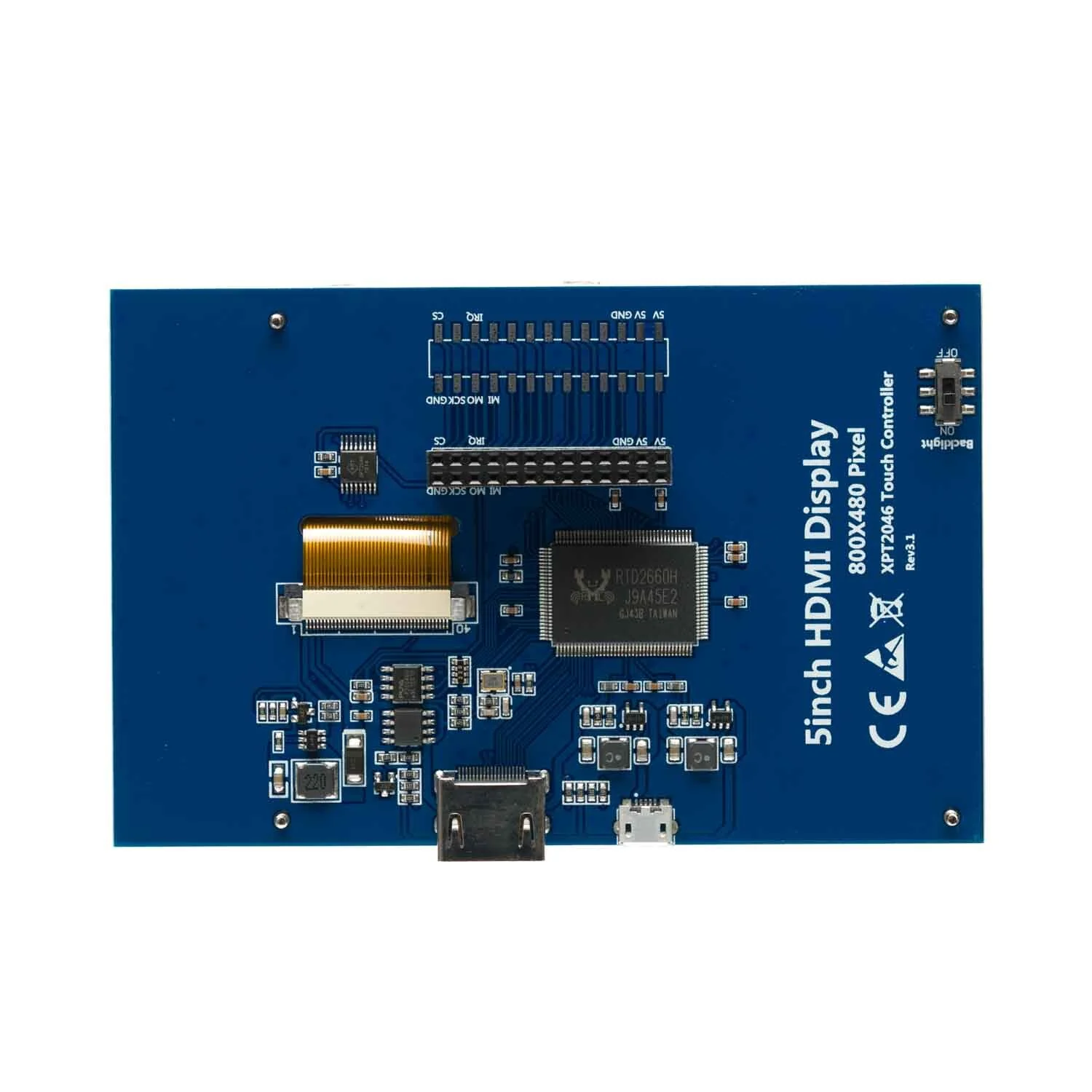

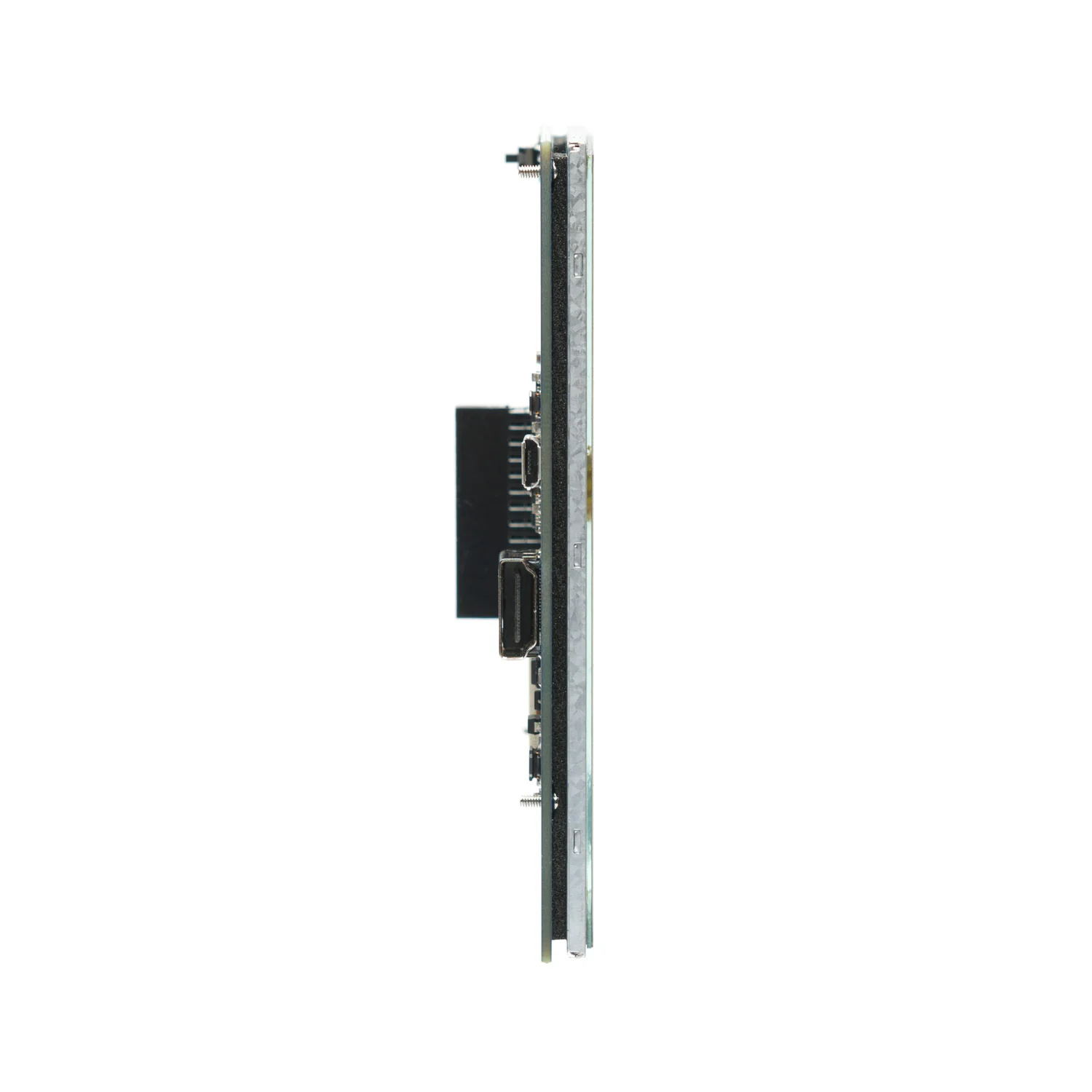

A compact 5-inch HDMI touchscreen display designed for Raspberry Pi 4. The 800×480 resolution is ideal for embedded projects, control panels, and portable Pi builds. Plugs directly onto your Pi for a clean, integrated setup.

Touch functionality works via the GPIO header, while the display connects through the onboard HDMI connector. Compatible with Raspberry Pi OS, Ubuntu, and Windows 10 IoT.

Key Features

• 5-Inch TFT Display – 800×480 resolution
• Resistive Touchscreen – Touch control via SPI/GPIO
• Direct Pi Connection – Plugs onto GPIO header (no cables needed)
• HDMI Compatible – Works with other HDMI devices too
• GPIO-Powered – No separate power supply required
• Multi-OS Support – Raspberry Pi OS, Ubuntu, LinuxMint, Windows 10 IoT

Specifications

• Display Size: 5 inch TFT LCD
• Resolution: 800 × 480
• Touch: Resistive (SPI via GPIO)
• Power: 5V via Raspberry Pi GPIO
• Dimensions: 120 × 74 × 7mm
• Weight: 125g

Compatibility

• Raspberry Pi 4 (direct plug-in)
• Raspberry Pi 3B+/3B/2B (direct plug-in)
• Raspberry Pi 1 Model B (requires HDMI cable)
• Other HDMI devices (display only, no touch)

Package Contents

• 1× 5-inch HDMI LCD Module
• 1× HDMI Connector
• 1× Touch Pen (Stylus)
• 1× RPi Screw Pack (4 pcs)

Resources

• User Manual (PDF)
