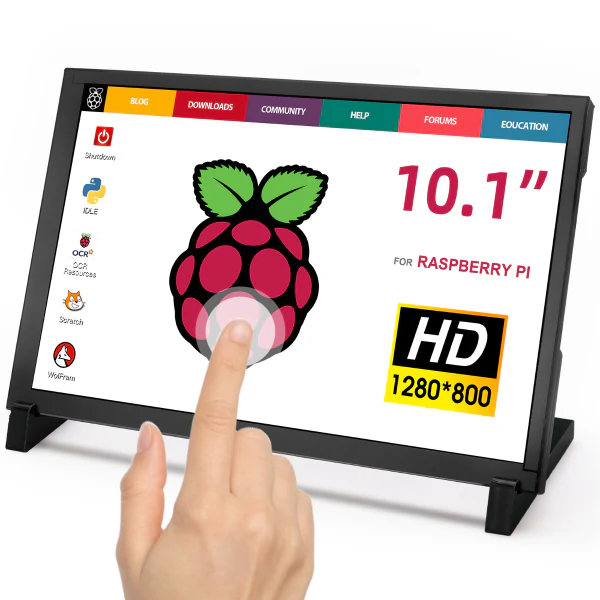

A 10.1-inch IPS touchscreen display with 1280×800 resolution and 178° viewing angles, designed for Raspberry Pi and other single-board computers. The capacitive 5-point touch panel provides fast, accurate response, while the included acrylic cover protects the screen and adds a polished look.

Connect via HDMI for plug-and-play operation with Raspberry Pi 3/3B+/4B/5, Jetson Nano, BeagleBone, Banana Pi, or any Windows/Linux PC. Adjustable backlight brightness and included mounting brackets provide flexible setup options.

Key Features

10.1" IPS Display – 1280×800 HD resolution with 178° viewing angles
5-Point Capacitive Touch – Smooth, accurate, fast response

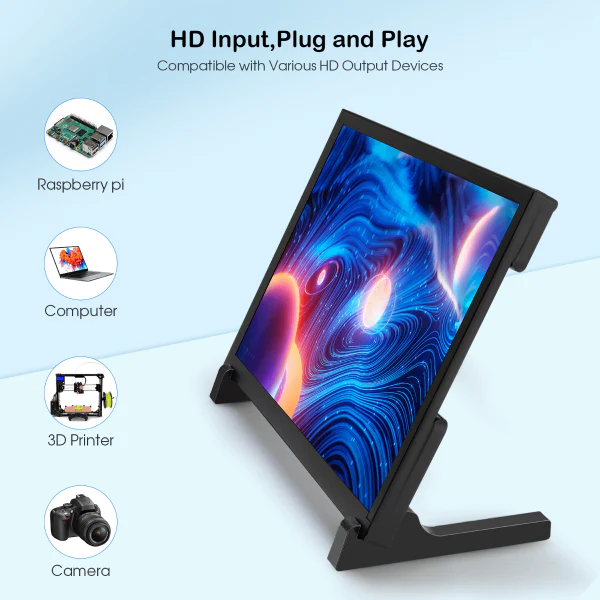

Plug and Play – HDMI connection, no drivers required
Adjustable Backlight – Button control for brightness adjustment
Acrylic Cover – Durable screen protection included
Desktop & Wall Mount – Includes stand brackets and rear mounting holes
Wide Compatibility – Works with Raspberry Pi, Jetson Nano, PC, and more

Specifications

Screen Size: 10.1 inches
Resolution: 1280×800
Panel Type: IPS
Touch Type: 5-point capacitive (SIS9200)
Video Input: HDMI (up to 1080p)
Power: Micro USB (5V)
Power Consumption: 5.29W (100% brightness)
Active Area: 216.6 × 135.4mm
Module Size: 239.4 × 157.4 × 12.3mm
Weight: 920g (with packaging)

Compatibility

Raspberry Pi 3, 3B+, 4B, 5
Jetson Nano
BeagleBone
Banana Pi
Windows, Linux, Ubuntu PCs

Package Contents

1× 10.1" Touch Display with Acrylic Cover
1× HDMI to HDMI Cable
1× HDMI to Mini HDMI Adapter
2× USB Cables
2× Mounting Brackets
1× Screw Pack
1× Screwdriver
1× User Manual

Resources

User Manual (PDF)
Product Wiki
Elecrow Forum

Cameras and displays

Raspberry Pi Touch Display 2

Elecrow 10.1 inch Display IPS 1280x800 Acrylic Case Touch Screen Compatible with Raspberry Pi

Laptop Instant Mount Clips for Monitor Display Tablet Smartphone iPad

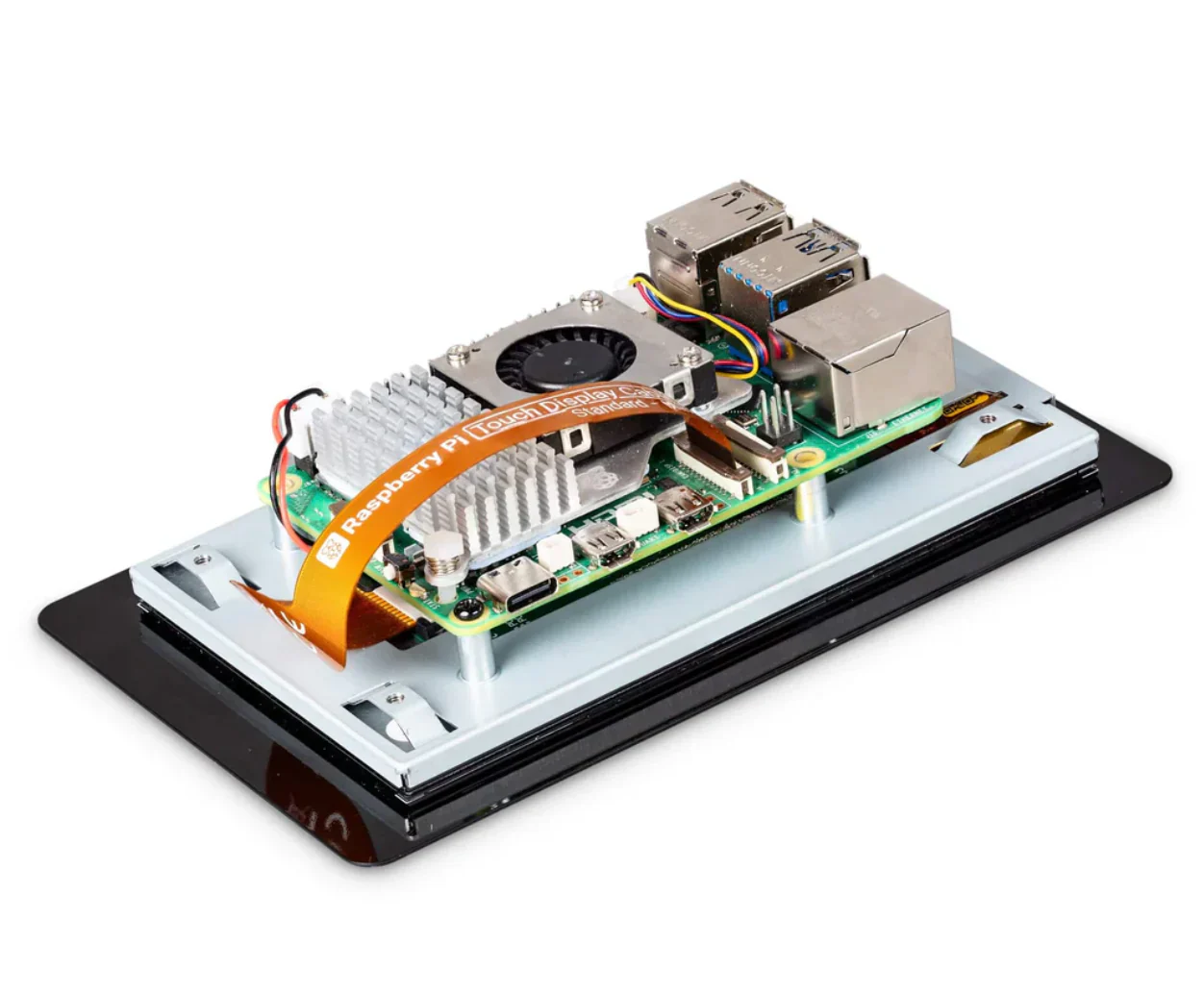

Raspberry Pi Touch Display 2 - 5 inch

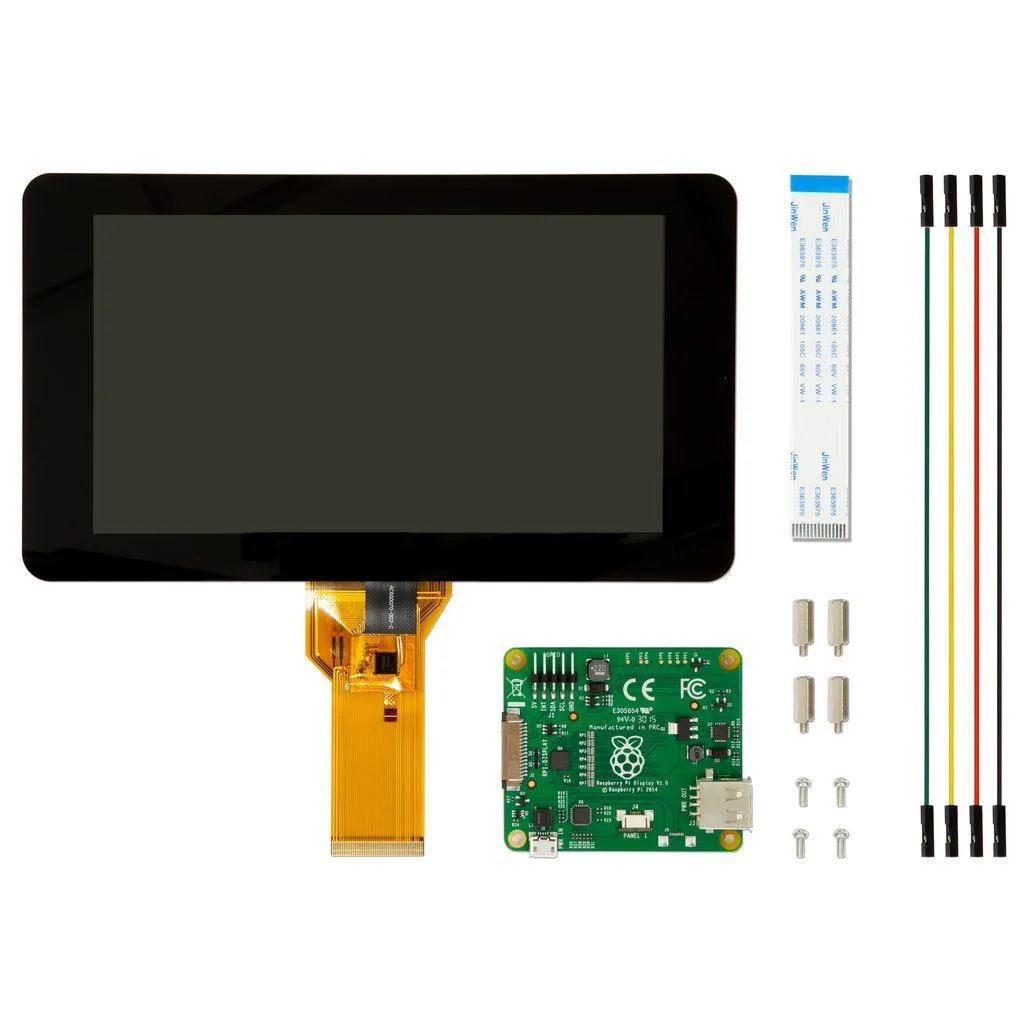

Raspberry Pi 7" Touchscreen Display (Official)
