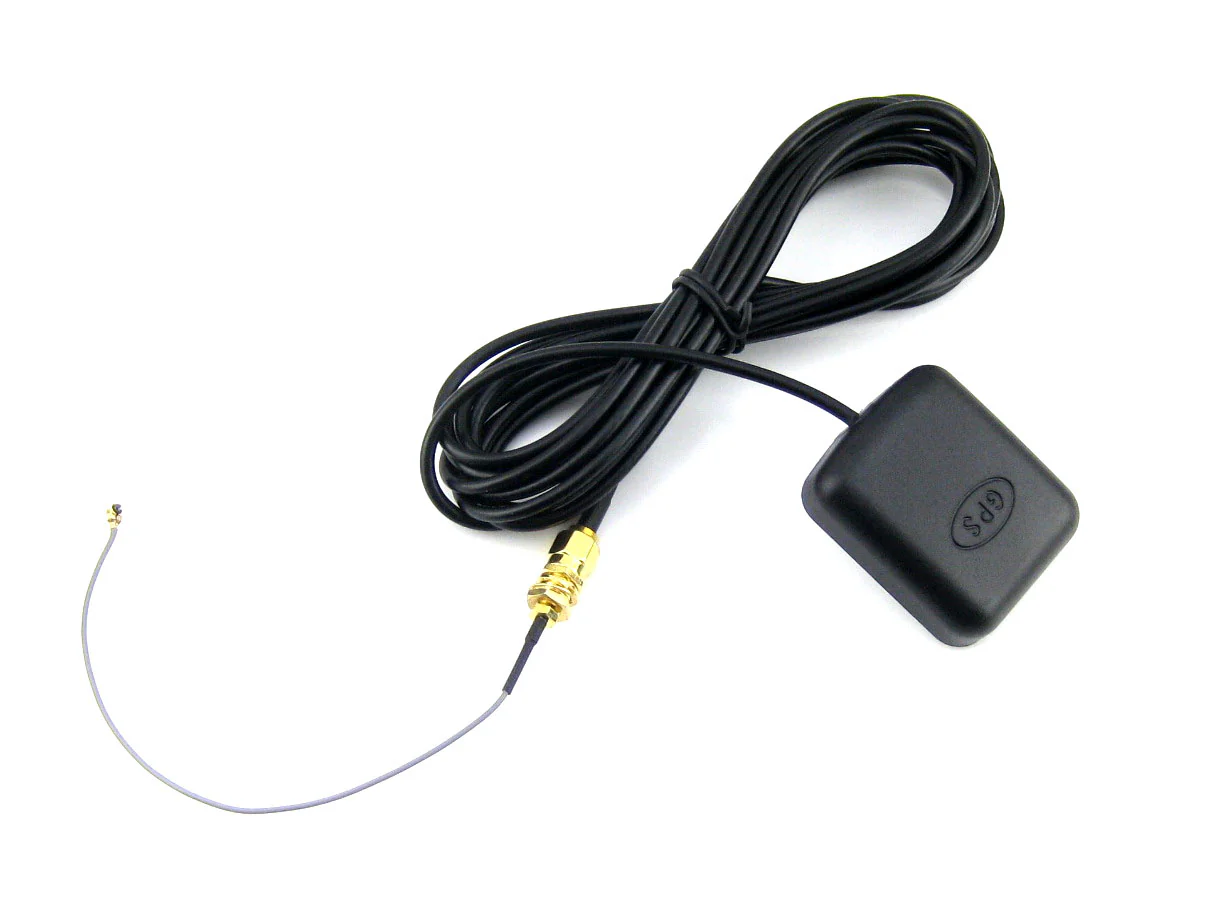

A high-performance external GPS antenna with built-in amplifier for improved signal reception. Features a ceramic element for optimal signal capture and comes with a 3m cable for flexible mounting options.

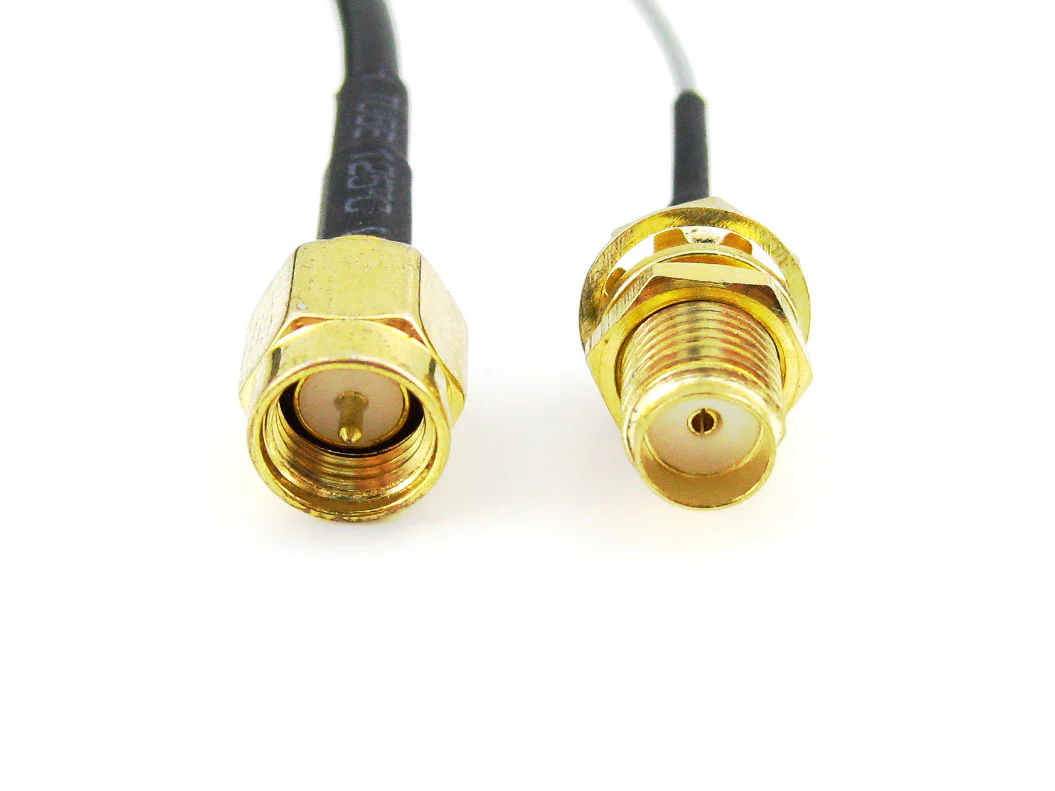

Includes both magnetic and adhesive mounting options, plus an IPX to SMA adapter for compatibility with various GPS modules and receivers.

Key Features

• Built-in Amplifier – 28±2dB gain for strong signal reception
• Ceramic Element – Superior signal capture
• Low Noise – Noise factor less than 1.0dB
• Weatherproof – IP65–IP67 rated
• Dual Mounting – Magnetic and adhesive options
• 3m Cable – RG174 with SMA connector

Specifications

• Frequency: 1575±1MHz (GPS L1)
• Polarisation: Right-Hand Circular (RHCP)
• Antenna Gain: 5dBic at zenith
• Amplifier Gain: 28±2dB
• Noise Figure: <1.0dB
• VSWR: <1.5
• Impedance: 50Ω
• Filter Loss: <3dB
• Ex-band Attenuation: 35dB @ CF±50MHz, 50dB @ CF±100MHz
• Dimensions: 25 × 25 × 4mm
• Cable: 3m RG174, tinned copper
• Connector: SMA (default)
• Operating Temp: -40°C to +85°C
• IP Rating: IP65–IP67
• Weight: 65g

Package Contents

• 1× GPS external antenna

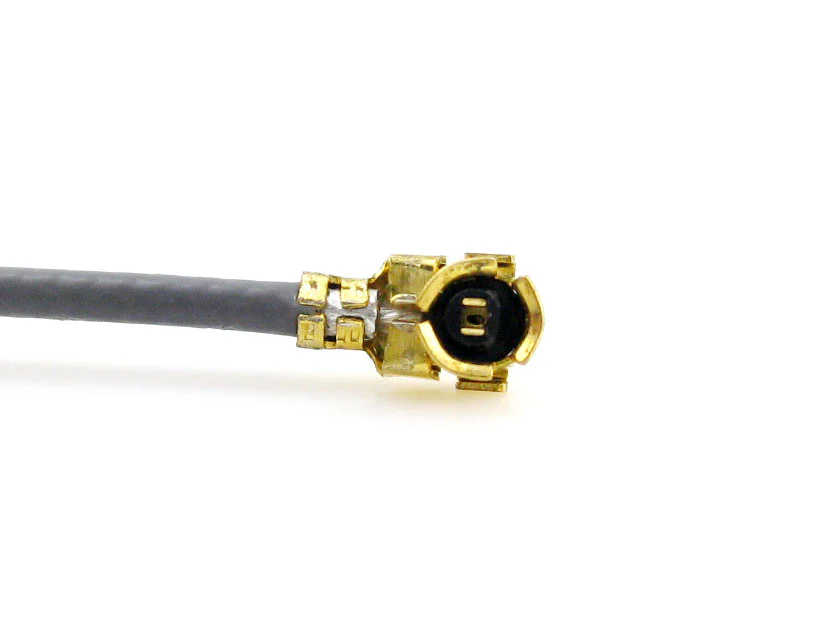

• 1× IPX to SMA adapter cable

Ideal For

• GPS navigation systems
• Vehicle tracking
• Raspberry Pi GPS projects
• Outdoor and weatherproof installations
