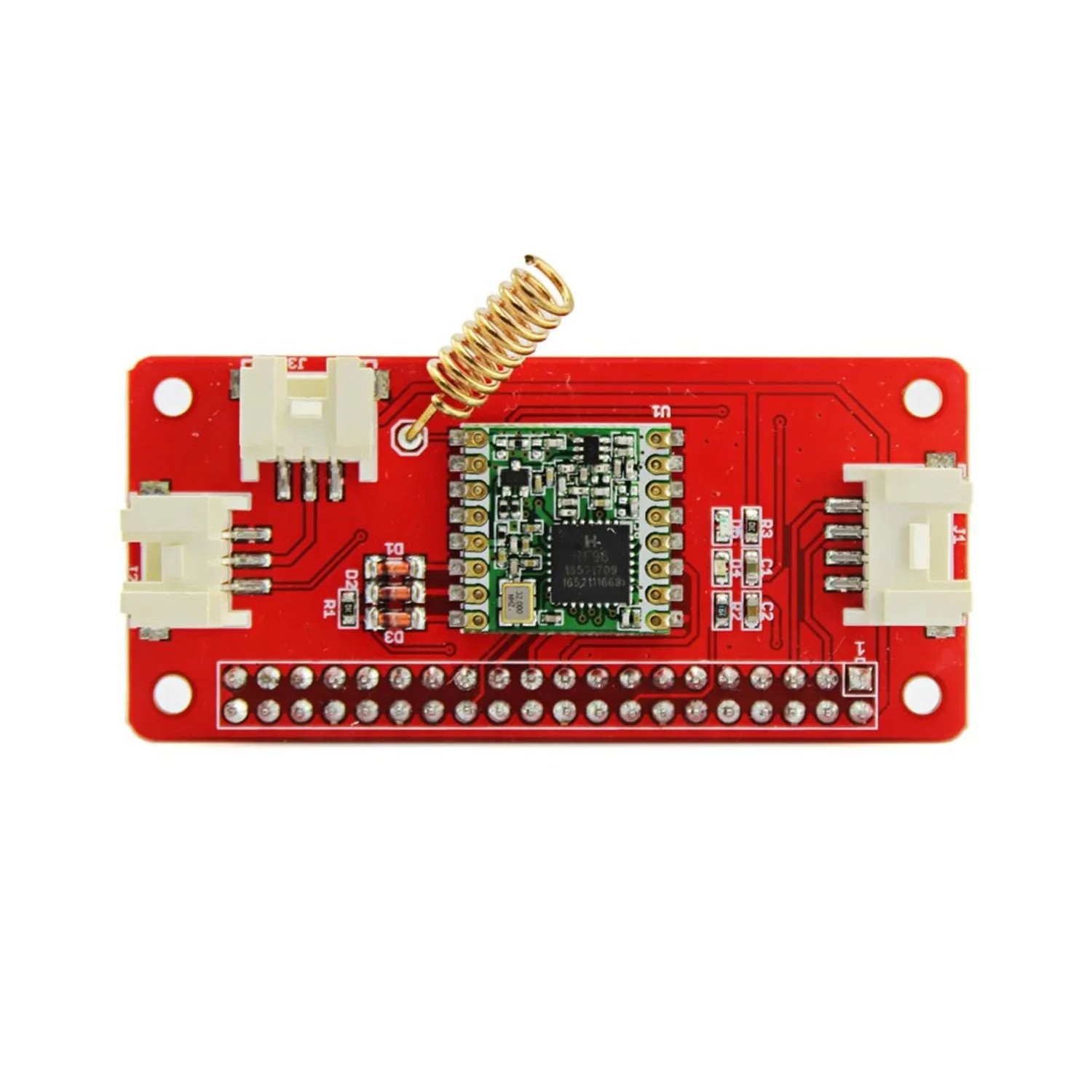

The LoRa RFM95 IoT Board brings long-range wireless communication to your Raspberry Pi projects. Based on the RFM95 LoRa modem, this HAT enables ultra-long-range data transmission with excellent interference resistance, making it ideal for IoT sensors, remote monitoring, and telemetry applications.

Operating at 915MHz (Australian frequency band), the board features a 168dB maximum link budget for exceptional range. Crowtail connector compatibility and I2C support make integration straightforward for a variety of projects.

Key Features

• LoRa Modem – RFM95 with spread spectrum technology for long-range communication
• 168dB Link Budget – Maximum range with excellent wall penetration
• 915MHz Operation – Australian ISM band frequency
• 20dBm Output Power – Strong signal transmission up to +20dBm
• Low Power Modes – 2μA sleep current for battery-powered applications
• Built-in Sensors – Temperature sensor and low battery indicator
• Crowtail Compatible – Easy connection to Crowtail ecosystem modules

Specifications

• Frequency – 915MHz
• Output Power – +20dBm
• Data Rate – Up to 300kbps
• TX Current – 120mA
• RX Current – 12mA
• Sleep Current – 2μA
• Supply Voltage – 3.7V to 5V

Ideal For

• Long-range IoT sensor networks
• Remote monitoring and telemetry
• Agricultural and environmental sensing
• Building automation systems
• Robotics remote control

Package Contents

• 1× LoRa RFM95 IoT Board for Raspberry Pi

Resources

• Elecrow Wiki – User Manual
