The PicoProbe PCB Kit turns your Raspberry Pi Pico into a debug probe for embedded development. With the PicoProbe firmware, it provides an SWD debugging interface compatible with OpenOCD and GDB, letting you debug Pico applications and other ARM Cortex-M microcontrollers.

The kit includes a Cortex-M SWD header and ribbon cable for connecting to target boards. Mount your Pico directly for a compact solution, or use the included headers for flexibility.

Key Features

• SWD Debug Interface – Standard ARM Cortex-M debugging
• OpenOCD Compatible – Works with common debugging tools
• GDB Support – Full source-level debugging
• Flexible Mounting – Solder directly or use headers
• 10-Pin SWD Header – Standard Cortex-M debug connector

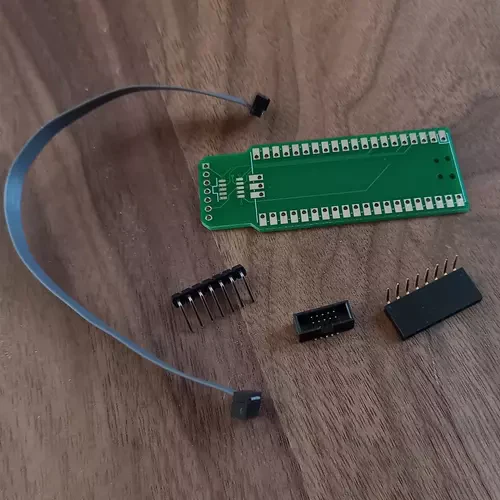

Kit Contents

• 1× PicoProbe PCB
• 1× Cortex-M SWD 10-pin header
• 1× Cortex-M SWD 10-pin ribbon cable
• 1× 6-pin male header
• 1× 6-pin female header

Ideal For

• Debugging Raspberry Pi Pico projects
• ARM Cortex-M development
• Embedded systems debugging
• Learning SWD debugging

Resources

• PicoProbe Firmware on GitHub
• Getting Started with Pico (PDF)
