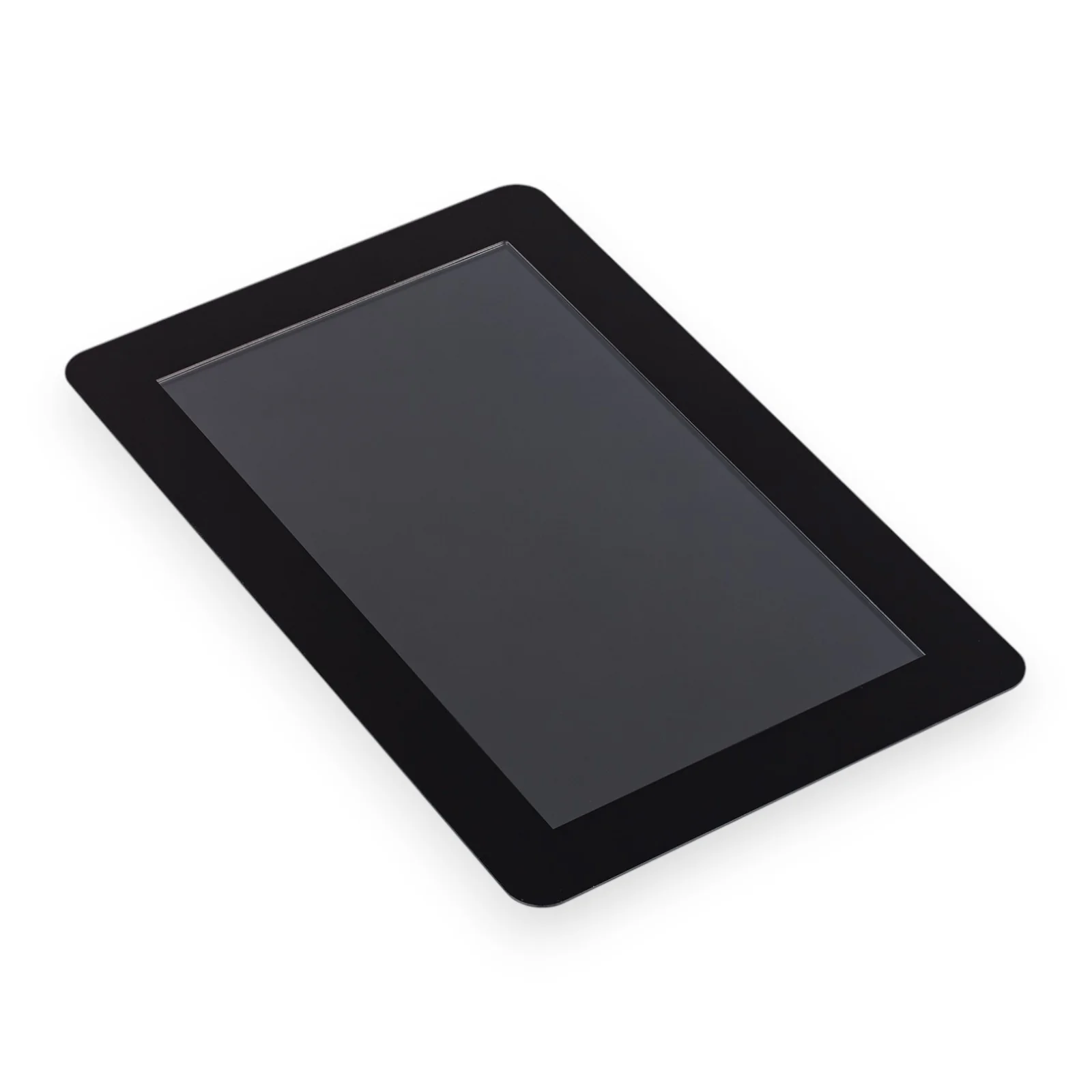

The Raspberry Pi Touch Display 2 is a 7-inch touchscreen display with 720×1280 resolution, ideal for interactive projects, information dashboards, home automation, or as a compact desktop monitor for your Raspberry Pi.

Featuring five-finger capacitive multi-touch and Raspberry Pi OS touchscreen drivers with an on-screen keyboard, you get full functionality without a physical keyboard or mouse. The display connects via ribbon cable to the DSI port and is powered directly from your Pi—no separate power supply needed.

Key Features

• 7" IPS Display – 720×1280 resolution with anti-glare treatment
• Five-Finger Multi-Touch – Capacitive touchscreen with true multi-touch
• No External Power – Powered directly by the Raspberry Pi
• Simple Connection – DSI ribbon cable and GPIO power
• Portrait or Landscape – Configurable orientation in software
• Rear Mounting Points – Built-in mounting for Pi boards (fixings included)

Specifications

• Display Size: 7 inches (diagonal)
• Resolution: 720 × 1280 (portrait default)
• Active Area: 88 × 155mm
• Overall Dimensions: 189.32 × 120.24mm
• LCD Type: TFT, transmissive, normally white
• Backlight: LED
• Touch: 5-point capacitive multi-touch

Compatible With

• Raspberry Pi 5
• Raspberry Pi 4 Model B
• Raspberry Pi 3 Model A+ / B+
• All Raspberry Pi models with DSI connector (except Zero and Pi 400 series)

Ideal For

• Information kiosks and dashboards
• Home automation interfaces
• Media centre controllers
• Compact desktop computing
