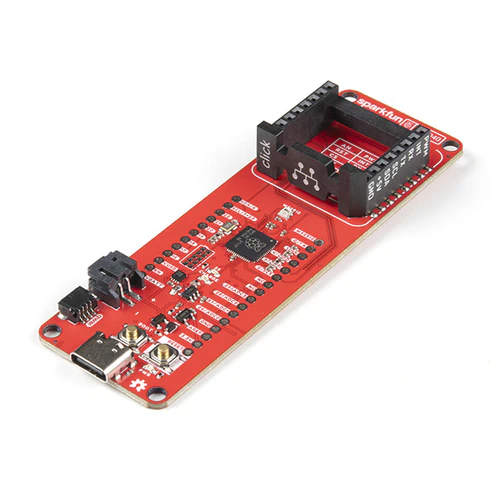

SparkFun RP2040 mikroBUS Development Board
The SparkFun RP2040 mikroBUS Development Board combines the Raspberry Pi RP2040 microcontroller with mikroBUS and Qwiic connectivity for maximum expansion options. The dual-core ARM Cortex-M0+ processor runs at up to 133MHz with 16MB flash and 264KB SRAM.
The board features a mikroBUS socket for MikroElektronika Click boards, Qwiic connectors for IĀ²C sensors, a microSD card slot, battery charging circuit, and USB-C connectivity with host/device support.
Key Features
- RP2040 Microcontroller ā Dual ARM Cortex-M0+ cores @ 133MHz
- mikroBUS Socket ā Compatible with Click expansion boards
- Qwiic Connectors ā Easy IĀ²C sensor integration
- 16MB Flash ā Ample storage for code and data
- MicroSD Card Slot ā Expandable storage
- Battery Charging ā Built-in LiPo charging circuit
- Addressable RGB LED ā WS2812 status indicator
- USB-C ā Host and device support
- JTAG Pins ā For debugging
Specifications
- Processor: Dual ARM Cortex-M0+ @ 133MHz
- SRAM: 264KB
- Flash: 16MB
- Expansion: mikroBUS socket, Qwiic connectors
Development Support
- C/C++ with Pico SDK
- MicroPython
Ideal For
- Rapid prototyping with Click boards
- Multi-sensor projects
- Battery-powered applications
- Data logging with microSD
Resources
- SparkFun Product Page
