Unicorn HAT Mini

Product image 1
1 / 4

Unicorn HAT Mini

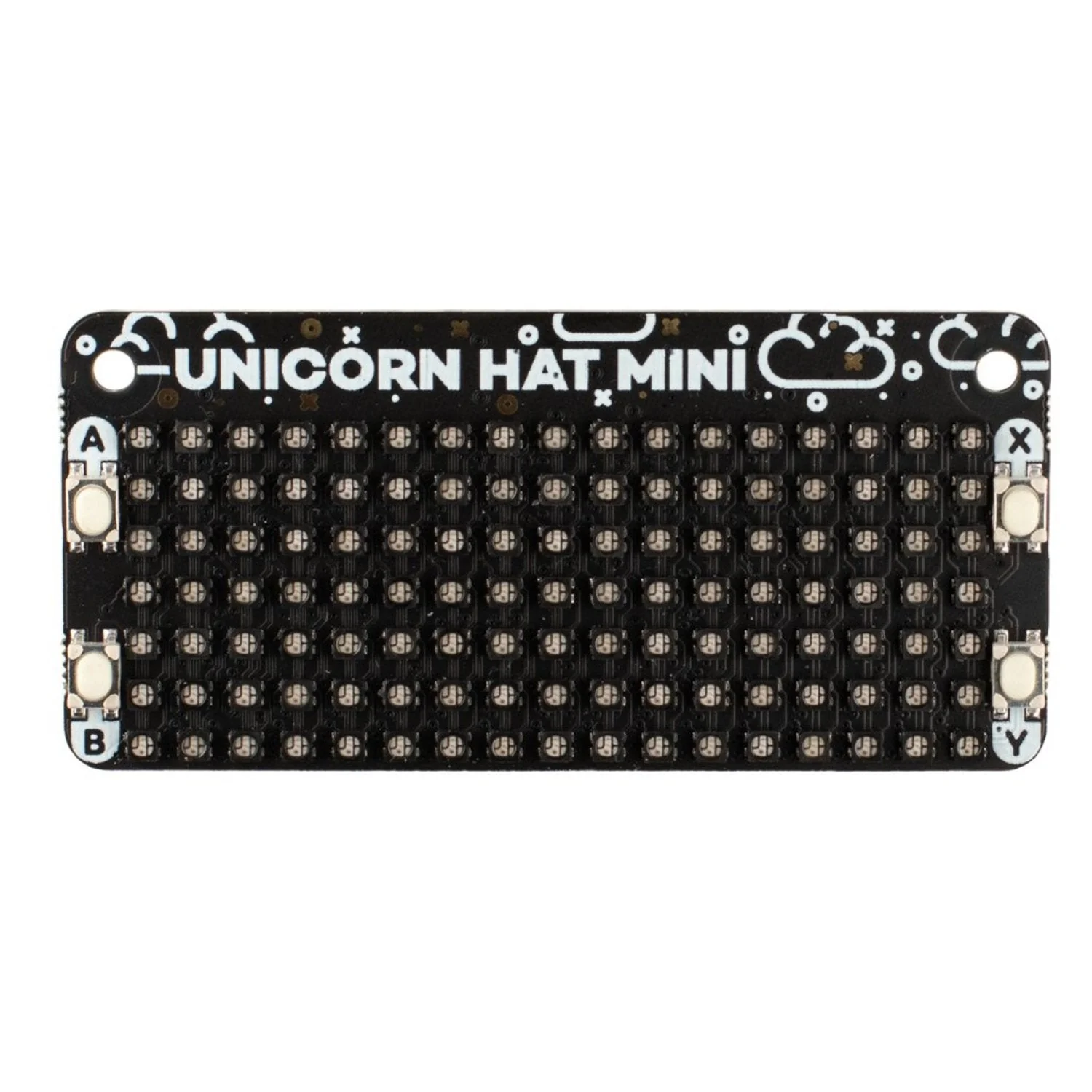

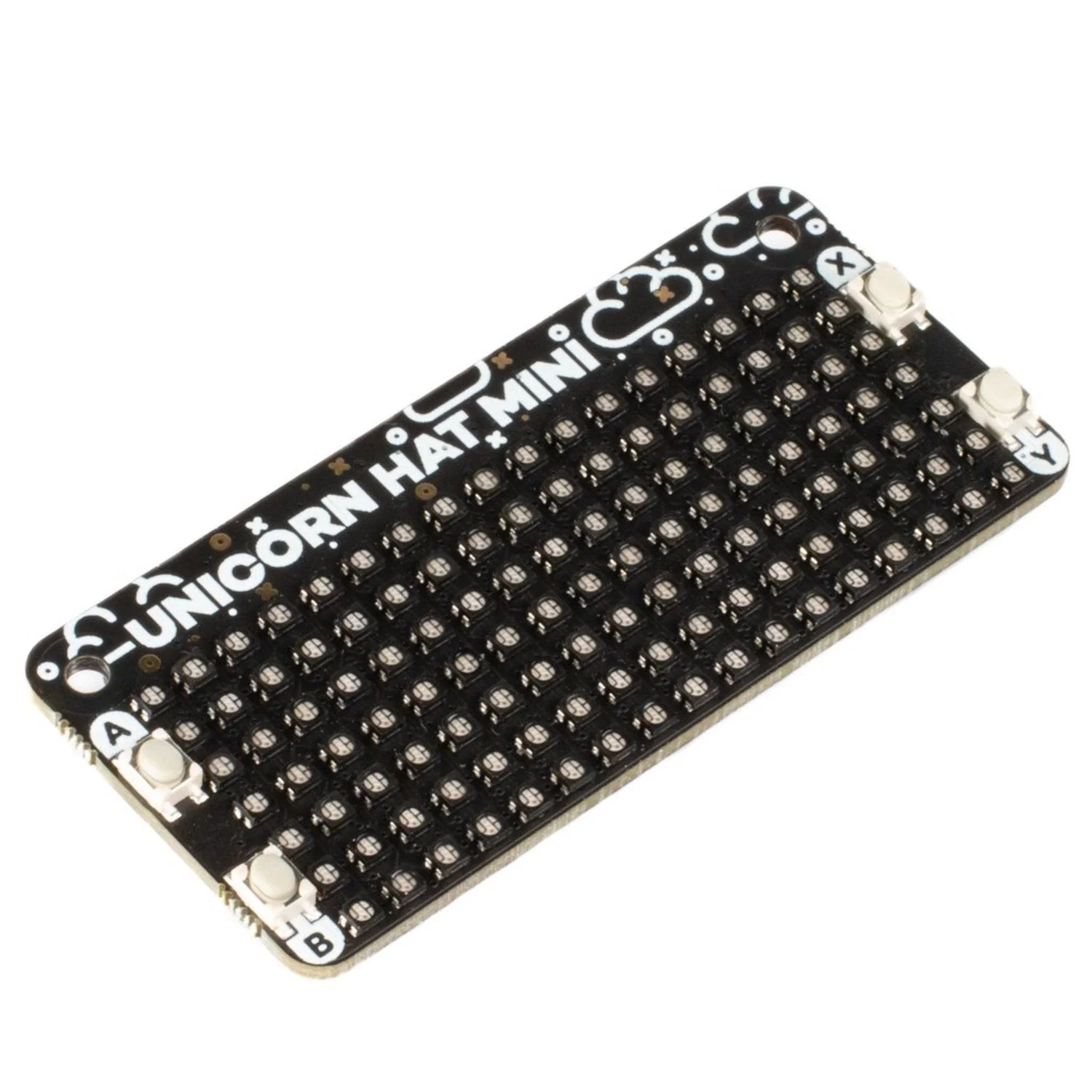

The Pimoroni Unicorn HAT Mini packs 119 individually controllable RGB LEDs into a pocket-sized display for your Raspberry Pi. The 17Γ—7 matrix is perfect for scrolling text, animations, mini games, and status displays.

Four tactile buttons provide user input for interactive projects. Uses the pHAT/mini HAT form factorβ€”no soldering required, just plug onto your Pi's GPIO header.

Key Features

  • 119 RGB LEDs – 17Γ—7 matrix, each LED individually controllable
  • Per-LED Control – Set colour and brightness for each pixel
  • Four Buttons – Built-in tactile buttons for user interaction
  • No Soldering – Fully assembled, ready to use
  • Python Library – Easy programming with included library
  • Compact Size – pHAT form factor (65Γ—30mm)

Specifications

  • LED Count – 119 RGB LEDs (17Γ—7 matrix)
  • Driver ICs – 2Γ— Holtek HT16D35A
  • Buttons – 4Γ— tactile switches
  • Dimensions – 65 Γ— 30 Γ— 10mm
  • Weight – 14g

Compatibility

  • Raspberry Pi with 40-pin header (Pi 3, Pi 4, Pi 5, Pi Zero, etc.)

Ideal For

  • Scrolling text displays and notifications
  • Mini games and animations
  • Status indicators and dashboards
  • Learning Python and LED programming
  • Wearable projects
Note: Uses matrix-driven RGB LEDs (not NeoPixel/addressable type). Raspberry Pi not included.

The Pimoroni Unicorn HAT Mini packs 119 individually controllable RGB LEDs into a pocket-sized display for your Raspberry Pi. The 17Γ—7 matrix is perfect for scrolling text, animations, mini games, and status displays.

Four tactile buttons provide user input for interactive projects. Uses the pHAT/mini HAT form factorβ€”no soldering required, just plug onto your Pi's GPIO header.

Key Features

  • 119 RGB LEDs – 17Γ—7 matrix, each LED individually controllable
  • Per-LED Control – Set colour and brightness for each pixel
  • Four Buttons – Built-in tactile buttons for user interaction
  • No Soldering – Fully assembled, ready to use
  • Python Library – Easy programming with included library
  • Compact Size – pHAT form factor (65Γ—30mm)

Specifications

  • LED Count – 119 RGB LEDs (17Γ—7 matrix)
  • Driver ICs – 2Γ— Holtek HT16D35A
  • Buttons – 4Γ— tactile switches
  • Dimensions – 65 Γ— 30 Γ— 10mm
  • Weight – 14g

Compatibility

  • Raspberry Pi with 40-pin header (Pi 3, Pi 4, Pi 5, Pi Zero, etc.)

Ideal For

  • Scrolling text displays and notifications
  • Mini games and animations
  • Status indicators and dashboards
  • Learning Python and LED programming
  • Wearable projects
Note: Uses matrix-driven RGB LEDs (not NeoPixel/addressable type). Raspberry Pi not included.
$12.39

Original: $35.39

-65%
Unicorn HAT Miniβ€”

$35.39

$12.39

Description

The Pimoroni Unicorn HAT Mini packs 119 individually controllable RGB LEDs into a pocket-sized display for your Raspberry Pi. The 17Γ—7 matrix is perfect for scrolling text, animations, mini games, and status displays.

Four tactile buttons provide user input for interactive projects. Uses the pHAT/mini HAT form factorβ€”no soldering required, just plug onto your Pi's GPIO header.

Key Features

  • 119 RGB LEDs – 17Γ—7 matrix, each LED individually controllable
  • Per-LED Control – Set colour and brightness for each pixel
  • Four Buttons – Built-in tactile buttons for user interaction
  • No Soldering – Fully assembled, ready to use
  • Python Library – Easy programming with included library
  • Compact Size – pHAT form factor (65Γ—30mm)

Specifications

  • LED Count – 119 RGB LEDs (17Γ—7 matrix)
  • Driver ICs – 2Γ— Holtek HT16D35A
  • Buttons – 4Γ— tactile switches
  • Dimensions – 65 Γ— 30 Γ— 10mm
  • Weight – 14g

Compatibility

  • Raspberry Pi with 40-pin header (Pi 3, Pi 4, Pi 5, Pi Zero, etc.)

Ideal For

  • Scrolling text displays and notifications
  • Mini games and animations
  • Status indicators and dashboards
  • Learning Python and LED programming
  • Wearable projects
Note: Uses matrix-driven RGB LEDs (not NeoPixel/addressable type). Raspberry Pi not included.
