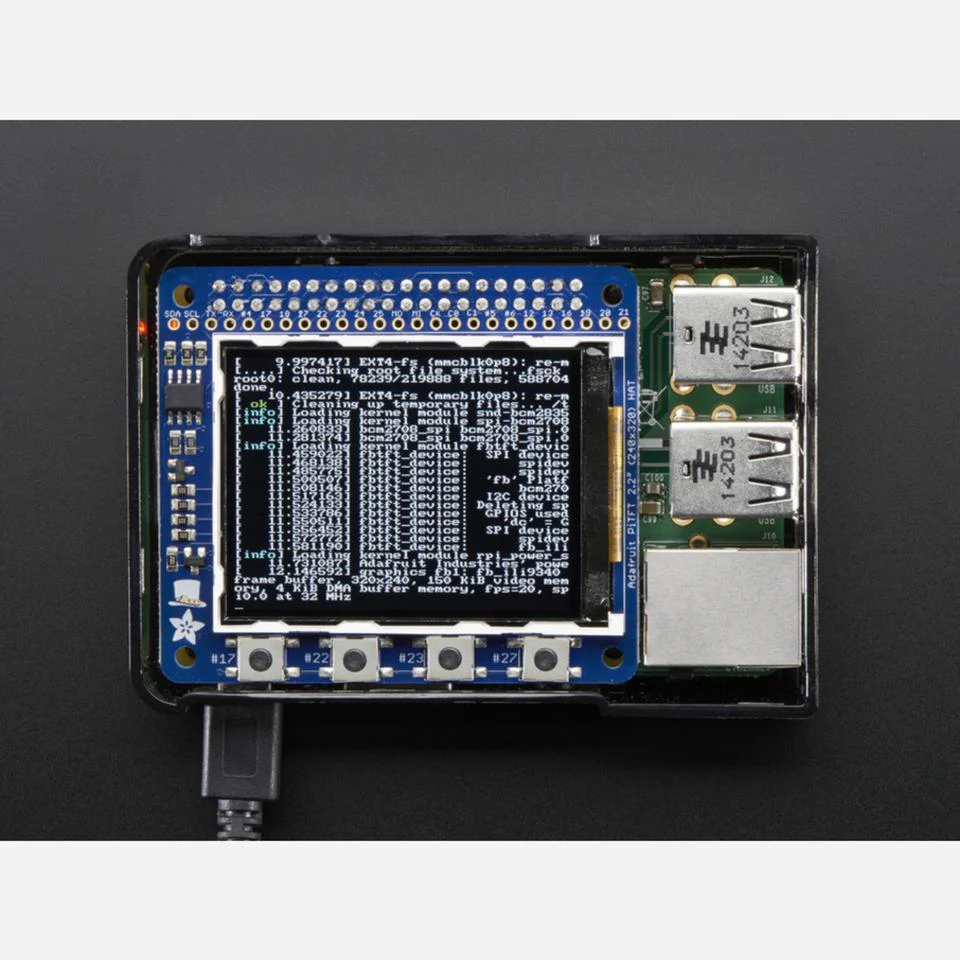

The Adafruit PiTFT 2.2" HAT is a compact colour display that plugs directly onto your Raspberry Pi. With a 320×240 pixel screen and high-speed SPI interface, it's perfect for console output, X windows, video playback, or custom interfaces—all without needing an external monitor.

This mini kit includes the display PCB and a 2×20 GPIO header (some soldering required). Four tactile buttons are wired to GPIOs for creating basic user interfaces like power control or menu navigation.

Key Features

• 2.2" TFT Display – 320×240 pixels, 16-bit colour
• SPI Interface – Fast updates via hardware SPI
• 4 Tactile Buttons – For custom UI controls
• HAT Form Factor – Plugs directly onto Pi A+, B+, Pi 2, Pi 3, Pi 4
• Breakout Header – 25 unused GPIO pins accessible
• ILI9340 Controller – Well-documented driver IC

Specifications

• Board Dimensions: 65mm × 57mm × 6mm
• Screen Dimensions: 55mm × 40mm
• Interface: SPI (SCK, MOSI, MISO, CE0, CE1) + GPIO #25

Ideal For

• Portable Pi projects (PiGRRL builds)
• System status displays
• Retro gaming handhelds
• Headless Pi setups needing local display

Package Contents

• 1× PiTFT 2.2" HAT (assembled display PCB)
• 1× 2×20 GPIO header (requires soldering)

Resources

• Setup Guide & Tutorial
• Datasheets & PCB Files
• OpenGL Games & Emulators Guide
