Power your Raspberry Pi from a LiPo or Li-Ion battery with this ultra-compact power supply. The 0.8mm thick PCB can be soldered directly to the GPIO header or attached via the included female header for a removable solution.

Uses the TPS61232 step-up boost converter for up to 96% efficiency. Features automatic shutdown at 3.0V to protect your battery and a low battery warning signal on GPIO 4.

Key Features

• Ultra-Compact – 0.8mm thick PCB, sits low on the Pi
• High Efficiency – Up to 96% with TPS61232 converter
• 1.5A Output – Continuous current for Pi operation
• Battery Protection – Auto shutdown at 3.0V
• Low Battery Warning – GPIO 4 asserts high at 3.4V
• Ultra Low Standby – 15µA quiescent current

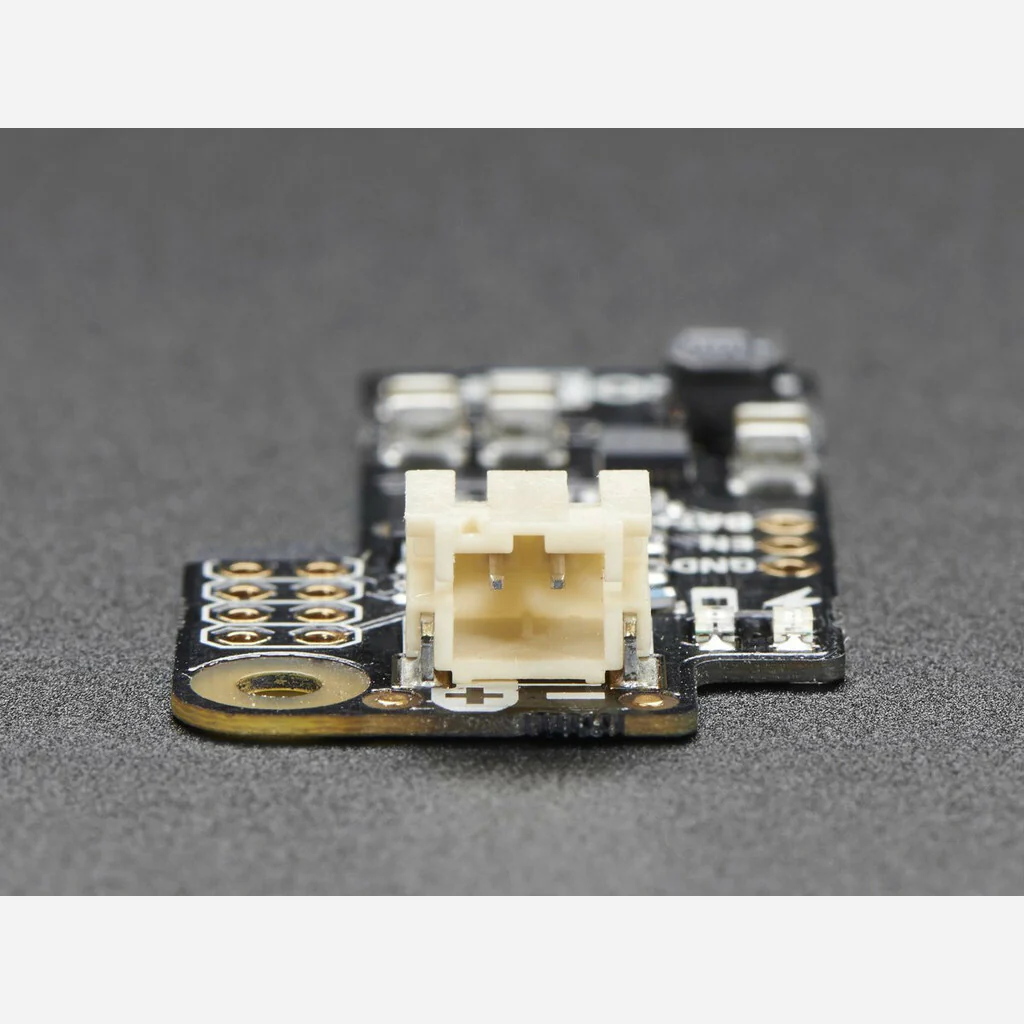

• JST Connector – Standard 2-pole for LiPo/Li-Ion batteries

Specifications

• Converter: TPS61232 Step-Up Boost
• Output Current: Up to 1.5A continuous
• Low Battery Warning: 3.4V (GPIO 4)
• Shutdown Voltage: 3.0V
• Standby Current: 15µA
• PCB Thickness: 0.8mm
• Compatibility: Pi Zero, A+, B+, 2, 3

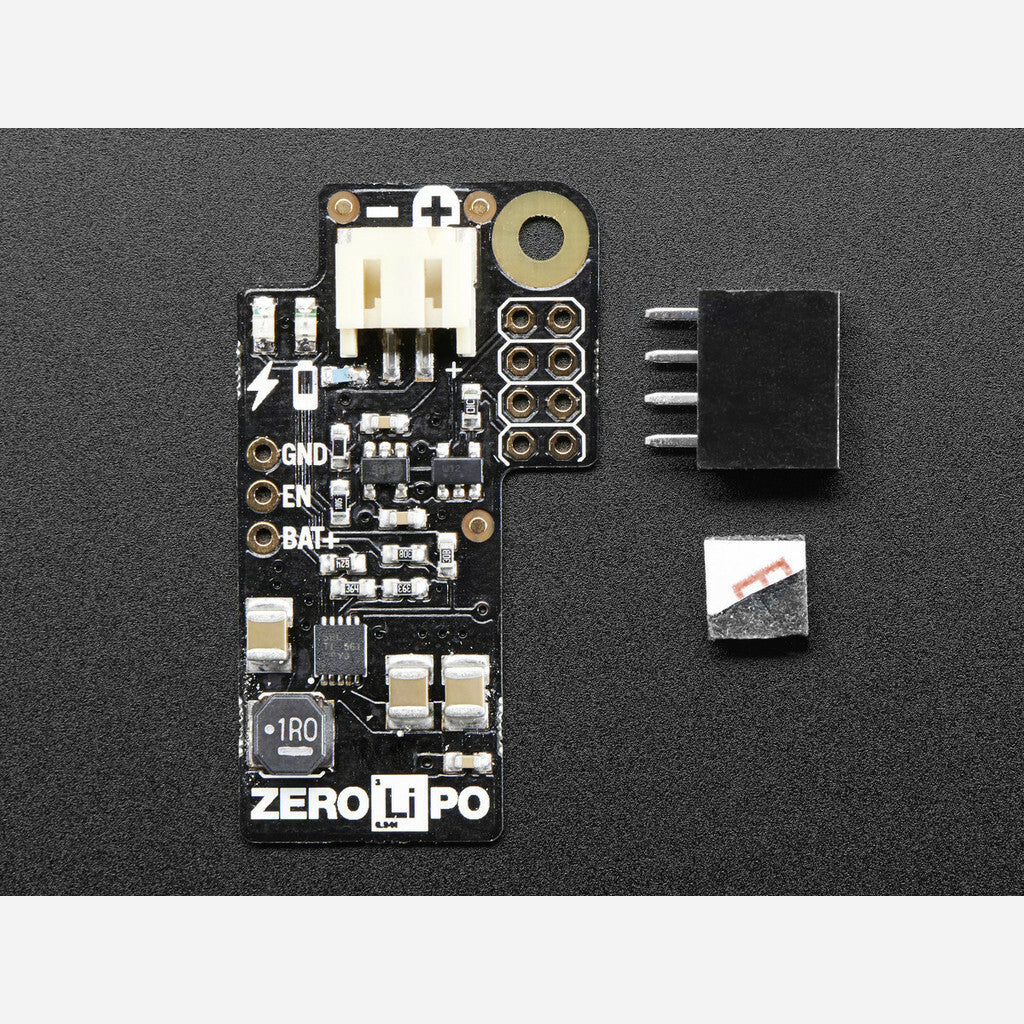

Package Contents

• 1× LiPo SHIM
• 1× 2×6 Female Header
• 1× Rubber Foot
