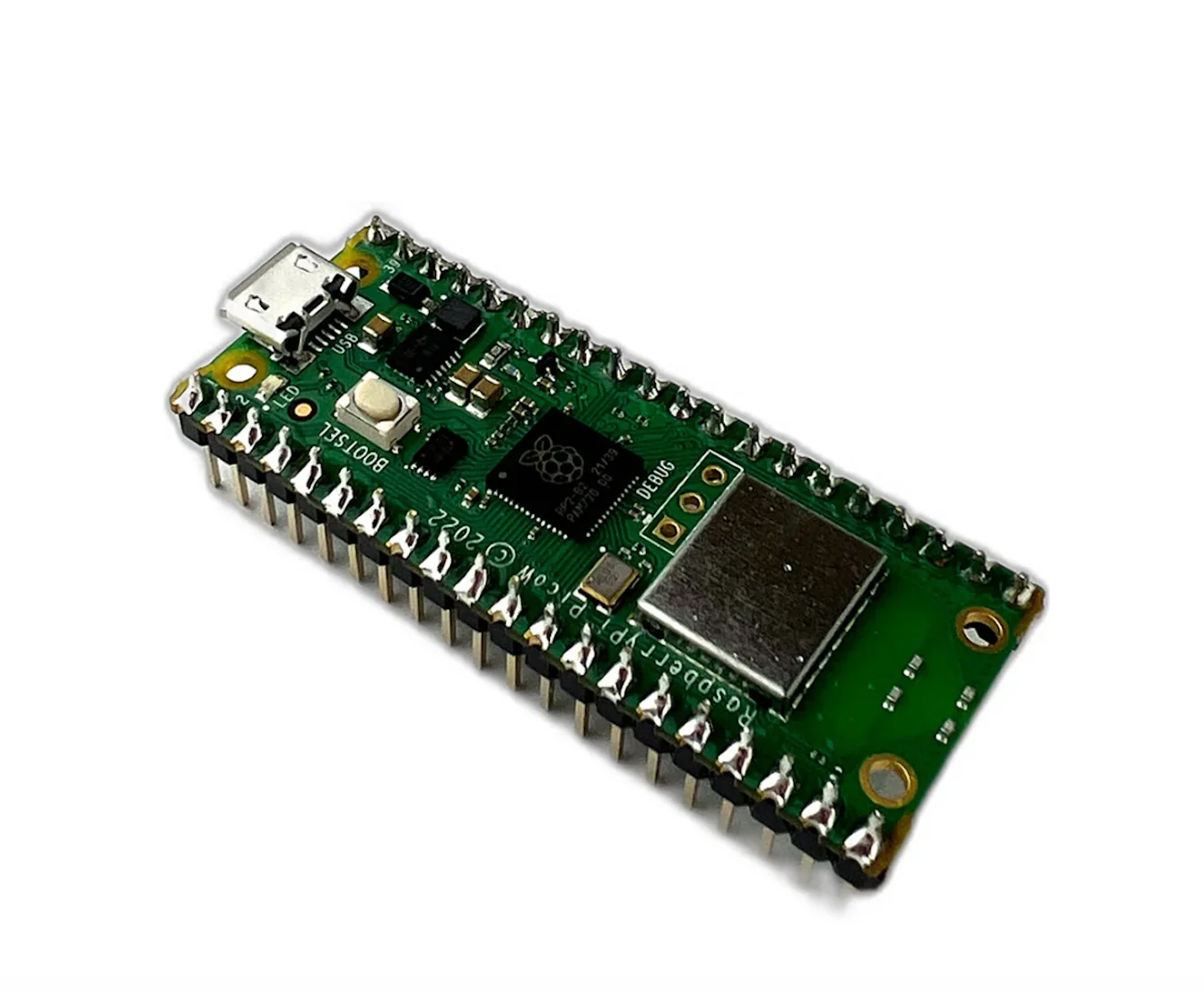

The Raspberry Pi Pico WH combines wireless connectivity with pre-soldered headers, making it the easiest way to get started with connected microcontroller projects. Simply plug it into a breadboard and start building Wi-Fi-enabled devices—no soldering required.

Powered by the RP2040 dual-core processor with built-in 2.4GHz Wi-Fi and Bluetooth Low Energy support, the Pico WH is perfect for IoT projects, wireless sensors, and smart home applications.

Key Features

• Pre-Soldered Headers – Ready for breadboard use out of the box
• Wi-Fi Connectivity – 802.11n wireless with WPA3 support
• Bluetooth LE Ready – Hardware support for BLE applications
• Dual-Core RP2040 – Two Arm Cortex-M0+ cores at 133MHz
• 264KB SRAM – Ample memory for complex projects
• 2MB Flash – Plenty of storage for programs and data
• Drag-and-Drop Programming – UF2 bootloader for easy firmware updates

Specifications

• Processor – RP2040 dual-core Arm Cortex-M0+ @ 133MHz
• Memory – 264KB SRAM, 2MB QSPI flash
• Wireless – 802.11n Wi-Fi, Bluetooth LE
• GPIO – 25 pins (3.3V logic), 3× ADC
• Interfaces – USB 1.1, 2× UART, 2× SPI, 2× I2C, 16× PWM

Software Support

• MicroPython with Wi-Fi support
• CircuitPython
• C/C++ SDK

Ideal For

• Beginners wanting wireless projects without soldering
• IoT and connected device development
• Breadboard prototyping
• Smart home sensors and controllers

Resources

• Official Documentation
